Printing on SmartPOS terminal

September 08, 2026

The Print API gives you full control over the thermal printer built into Kushki ONE terminals. Print any content from your POS system — before, during or after a transaction, or with no transaction at all — without installing drivers, SDKs or configuring hardware on your side.

Requirements

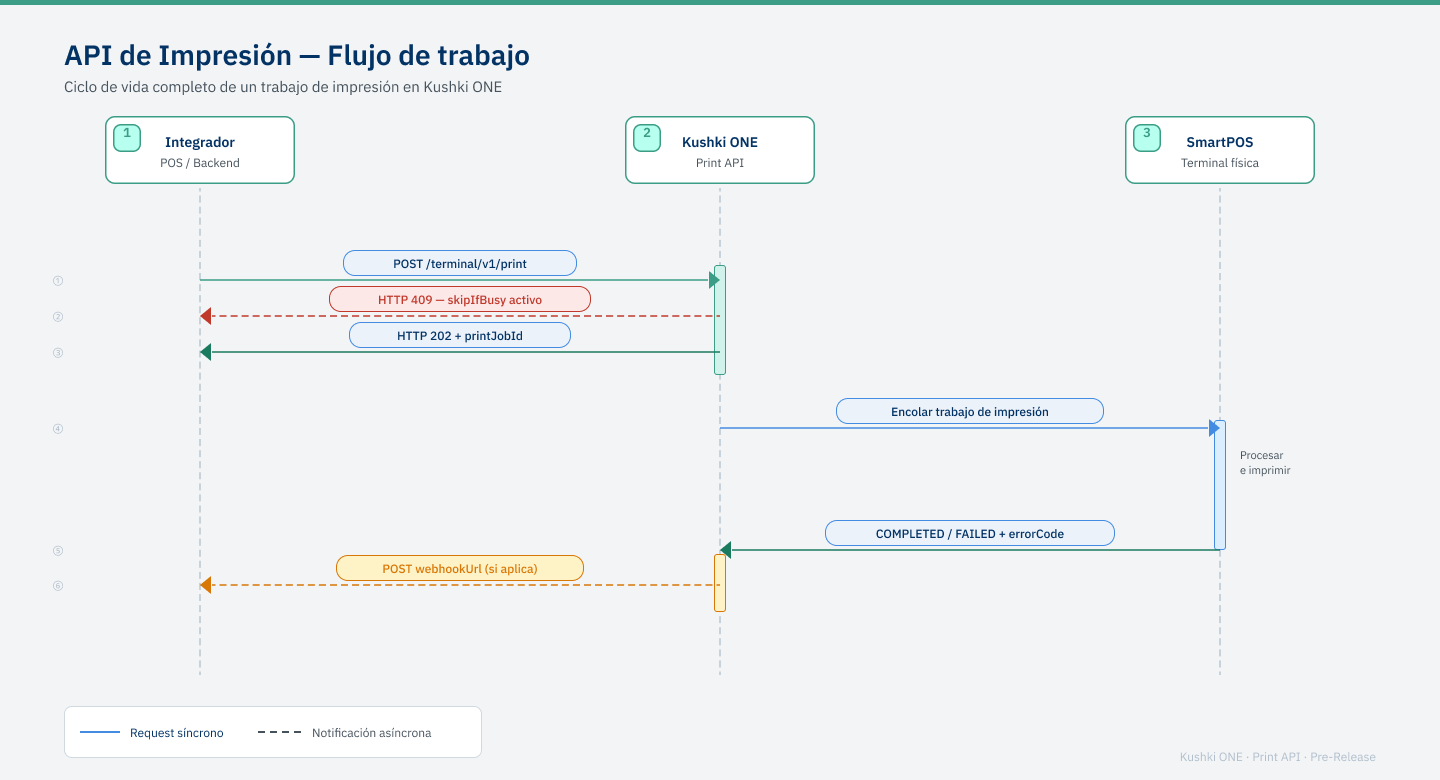

How it works

The print cycle has two parts: a sync request that queues the job, and an async notification that tells you when it finished.

1. Your POS system builds a commands array with the receipt layout.
2. You send the job creation request. The terminal answers 202 Accepted right away.
3. Printing runs asynchronously on the hardware.
4. You learn the final result over webhook or by querying the status.

The payloads and the headers are identical across topologies. The routes are not: the base URL stops at the terminal, and each route carries its own prefix.

Authentication

Printing uses the same mechanism as the payment operations — hash + encryption, the only one Kushki ONE has:

The commands array shown on this page is the plaintext you encrypt, not what travels on the wire. The full flow is on Authentication and request encryption.

Use cases

The API is not limited to payment receipts. Any content your business needs to hand over on paper can be triggered from your POS system.

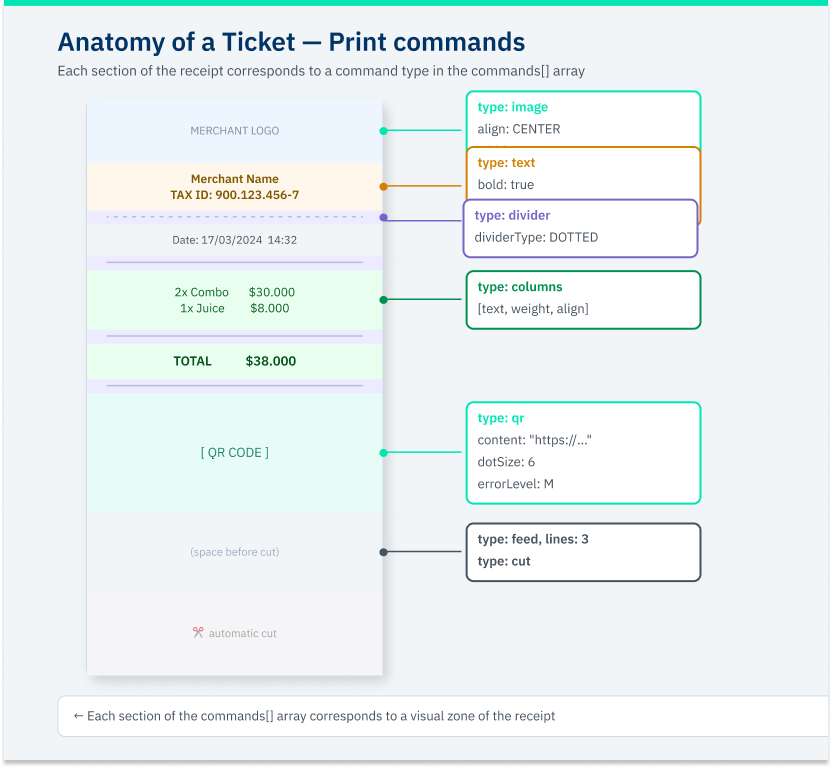

Anatomy of a receipt

Each visual section of the receipt maps to a command type inside the commands array.

Request structure

Command types

Full example

This request builds a receipt with a logo, header, line items, total, QR code and an automatic cut.

{
  "printJobId": "TICKET-190209",
  "externalReference": "Table-14",
  "webhookUrl": "https://api.yourbusiness.com/webhook/print-events",
  "skipIfBusy": false,
  "commands": [
    { "type": "image", "base64Image": "iVBORw0KGgoAAAANSUhEUg...", "align": "CENTER", "width": 300, "algorithm": "BINARIZATION" },
    { "type": "text", "text": "EL BUEN SABOR RESTAURANT\n", "align": "CENTER", "size": 32, "bold": true },
    { "type": "text", "text": "Tax ID: 900.123.456-7\n", "align": "CENTER", "size": 22 },
    { "type": "divider", "dividerType": "DOTTED" },
    { "type": "columns", "columns": [
        { "text": "2x Burger Combo", "weight": 2, "align": "LEFT" },
        { "text": "30,000.00 COP", "weight": 1, "align": "RIGHT" } ] },
    { "type": "columns", "columns": [
        { "text": "1x Fresh Juice", "weight": 2, "align": "LEFT" },
        { "text": "8,000.00 COP", "weight": 1, "align": "RIGHT" } ] },
    { "type": "divider", "dividerType": "SOLID" },
    { "type": "columns", "columns": [
        { "text": "TOTAL", "weight": 2, "align": "LEFT" },
        { "text": "38,000.00 COP", "weight": 1, "align": "RIGHT" } ] },
    { "type": "qr", "content": "https://yourbusiness.com/receipt/TICKET-190209", "dotSize": 6, "errorLevel": "M", "align": "CENTER" },
    { "type": "feed", "lines": 3 },
    { "type": "cut" }
  ]
}

Send the request from your back-end:

const res = await fetch(`${BASE_URL}/print`, {
  method: "POST",
  headers: buildHeaders(payload),   // Authorization + timestamp
  body: JSON.stringify(payload),
});

const job = await res.json();
console.log(res.status, job.printJobId, job.status);
// 202  TICKET-190209  PENDING

import requests

res = requests.post(f"{BASE_URL}/print",
                    headers=build_headers(payload), json=payload)

job = res.json()
print(res.status_code, job["printJobId"], job["status"])
# 202  TICKET-190209  PENDING

The terminal answers immediately:

{
  "printJobId": "TICKET-190209",
  "status": "PENDING",
  "message": "Impresión encolada correctamente"
}

Job result

You have two mechanisms to learn the final result. Use one or both in parallel.

Option A: webhook

If you sent a webhookUrl when queueing, the terminal makes a POST to that URL when the job turns COMPLETED or FAILED.

Successful job

{
  "printJobId": "TICKET-190209",
  "status": "COMPLETED",
  "externalReference": "Table-14"
}

Hardware failure

{
  "printJobId": "TICKET-190209",
  "status": "FAILED",
  "externalReference": "Table-14",
  "errorCode": "OUT_OF_PAPER",
  "errorMessage": "La impresora está sin papel."
}

Option B: query the status

Use this when your system cannot receive inbound connections from the terminal, or as a webhook fallback.

Local Network

GET /terminal/v1/print_job?print_job_id=TICKET-190209

Cloud

POST /terminal/v1/{terminalSerial}/sync/print_job

{
  "print_job_id": "TICKET-190209"
}

Poll every 2 or 3 seconds and stop once status is COMPLETED or FAILED.

{
  "printJobId": "TICKET-190209",
  "status": "COMPLETED"
}

Job statuses

Hardware error codes

The possible values of errorCode are OUT_OF_PAPER, COVER_OPEN, COVER_INCOMPLETE, PAPER_JAM, PRINTER_HOT, MOTOR_HOT, CUTTER_ERROR, OFFLINE and UNKNOWN_ERROR. They arrive with type: TERMINAL-PRINTER in the error body.

A busy queue is not one of them: it arrives as TER-004 with type: TERMINAL, and over HTTP as a 409.

Best practices

• Send your own printJobId so you can reprint the same receipt and discard duplicates in your system.
• Use externalReference to tie the receipt to your order, table or invoice.
• Answer the webhook with 2xx before processing it. A slow endpoint means you lose the notification.
• Treat FAILED as an operational condition, not an integration error: show the errorMessage to the operator so they can fix the physical problem.
• Send images already binarized and at the right width. A heavy logo lengthens print time.
